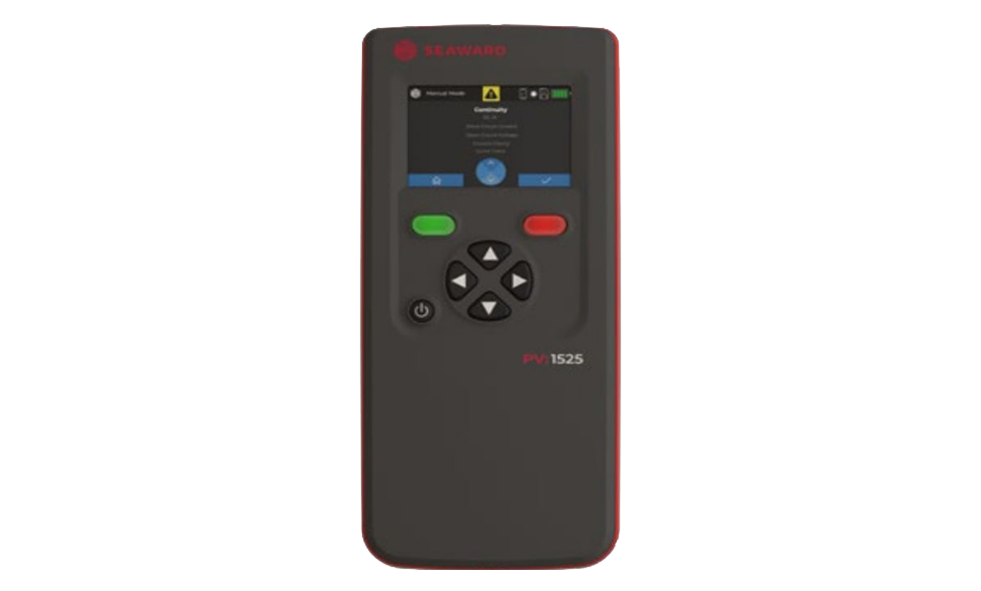

PV 1525 太陽能系統測試儀
chevron_right
PV:1525 全新定義太陽能電站系統測試標準，將先進功能與輕巧手持設計完美結合。
專為太陽能電站安裝人員與運維工程師量身打造，PV:1525 可執行高達 1500V DC、25A 的關鍵安全測試，體積小巧、操作簡便，並具備現場即時資料管理功能，是您進行專業太陽能光伏測試的理想選擇。
專為精準設計，專為高效而造
在快速演進的太陽能產業中，精準測試與高效流程缺一不可。PV:1525 正是為此而來，結合尖端科技，簡化現場測試流程，同時提供完整性能數據洞察，讓您在效率、攜帶性與資料管理之間無縫切換，輕鬆達成「事半功倍」。
作為我們最新一代光伏測試儀，PV:1525 承襲前代產品的優異表現，推出全新手持式設計，不僅功能全面升級，操作體驗依然直覺易用。
PV:1525 - 無縫連接的全面測試
無論是系統建置、故障排查或日常維護，PV:1525 都是工程師的最佳助手，涵蓋全方位電氣安全測試，包括絕緣電阻、接地連續性、開路電壓與短路電流等，支援最高 1500V DC、25A 系統需求。
搭載直覺化操作介面與藍牙連線功能，可與 PV:Mobile App 完美整合，PV:1525 正是邁向高效、可靠光伏測試新時代的關鍵一步。
更聰明的太陽能測試從這裡開始
比較 Seaward 太陽能測試範圍
| General Features | PV:1525 | PV200/150+ |
| Short Circuit Current Measurement (Max) | 1500V | 1000V |
| Open Circuit Voltage Measurement (Max) | 25A | 15A |
| Maximum Power Rating | 37.5kW | 10kW |
| Maximum Insulation Resistance Voltage | 1500V | 1000V |
| Continuity Measurement | 200mA | 200mA |
| Display | Colour Screen | Backlit LCD |
| Memory | 999 | 999 |
| Test Asset Identification Input | Yes | No |
| Intelligent In Rush Current Protection | Yes | No |
| Irradiance Measurment Range | 1500W/m² | 1250W/m² |
| Current Clamp Connectivity | Wireless and Standalone | Wired Only |
| Download Method | Bluetooth | Wired / NFC |
Technical Specifications
| Open Circuit Voltage Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.0VDC - 1500VDC |
| Measuring Range | 5.0VDC - 1500VDC |
| Resolution | 0.1VDC maximum |
| Earth Continuity / Resistance Measurement (4mm Terminals) | |
|---|---|
| Test Voltage Open Circuit | >4VDC, nominal |
| Test Current into 2Ω | >200mA |
| Display Range | 0.00Ω - 199Ω |
| Measuring Range (EN 61557-4) | 0.05Ω - 199Ω |
| Resolution | 0.01Ω maximum |
| Test Leads Zero | Zero up to 10Ω |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat tests as per IEC61557-4 | Approx 4000 1 second tests |
| Rpe Voltage Measurement (4mm Terminals) | |
|---|---|
| Display Range | 30V - 440VAC/DC |
| Voltage Measuring Range | 30V - 440VDC 30V - 440VAC 50-60Hz |
| Resolution | 1V |
| Operating Power (PV Terminals & wireless using PV:1500 Clamp) | |
|---|---|
| Display Range | 0.00kW - 40kW |
| Measuring Range | 0.50kW - 40kW |
| Resolution | 0.01kW |
| Short Circuit Current Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.00ADC - 25.00ADC |
| Measuring Range | 0.50ADC - 25.00ADC |
| Maximum Power | 37.5kW |
| Resolution | 0.01 ADC maximum |
| Insulation Resistance Measurement (4mm Terminals) | |
|---|---|
| Test Voltage Open Circuit | 250, 500, 1000, 1500V (as per IEC61557-2) |
| Test Current Short Circuit | 2mA |
| Display Range | 0.05MΩ - 300MΩ |
| Measuring Range (EN61557-2) | 0.05MΩ - 300MΩ |
| Resolution | 0.01MΩ Maximum |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat tests as per IEC61557-4 | Approx 4000 1 second tests |
| Operating Current (Wireless via PV:1500 Clamp) | |
|---|---|
| Display Range | 0.1A - 40.0A |
| Current Measuring Range | 0.1A - 40.0A DC 0.1A - 40.0A AC 50-60Hz |
| General Specification | |
|---|---|
| Weight | 1kg / 2.2lb |
| Dimensions | 265 x 115 x 78 mm 10.4 x 4.6 x 3.1 in |
| Display | 3.5in Colour display with Backlight |
| Power Source | 11.55V 2930mAH LiPo Battery |
| Auto Power Down | User Configurable |
| Onboard Memory | 1000 Slots |
