During a recent Isotech seminar, twenty experienced engineers from many parts of the world were asked to produce their ideal specification for industrial Dry Block Calibrators. Their top ten requirements, in order of priority, are listed below. 1. Rugged 2. Light weight 3. Easy to use on site 4. Low cost / high benefit ratio 5. Fast response, high stability 6. Time saving features 7. Multiple sensor testing 8. Software 9. Modern design 10. Compliant with the latest regulations The result is our new range of Fast-Cal dry block calibrators

25 x 148mm Calibration Volume
Rugged
Lightweight
Easy to use on site

DESCRIPTION

Need advice on which model? Dry Block Selection Guide

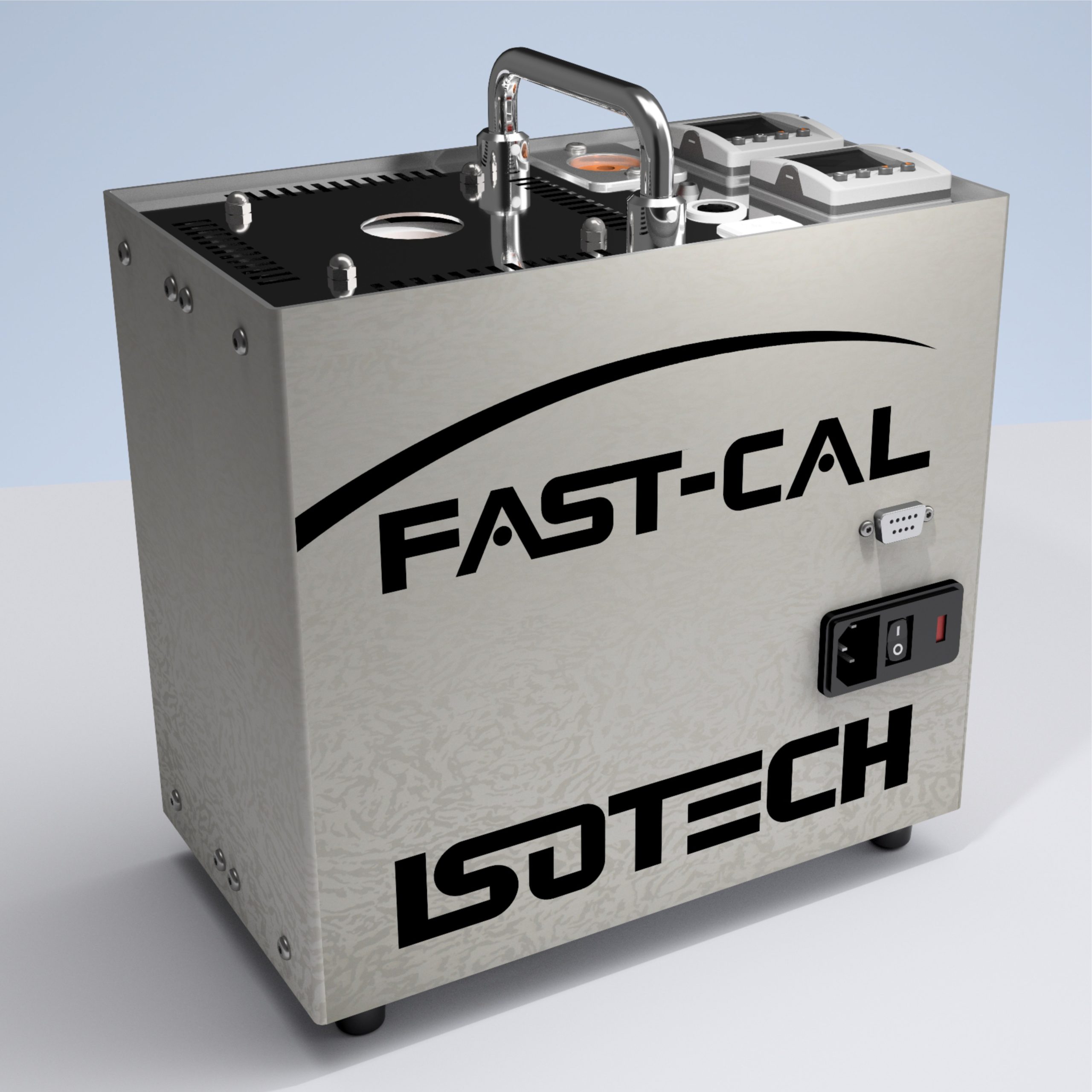

Fast-Cal – the product range you designed !

During early 2004 20 experienced engineers from many parts of the world were asked to produce their ideal specification for industrial calibration. Their top ten requirements, in order of priority, are: Rugged, Lightweight, Easy to use on site, Low cost/high benefit ratio, Fast response, high stability, Time saving features, Multiple sensor testing, Software, Modern design, Compliant with the latest regulations.

One model is ideal for the validation of Washer Disinfectors, Steam Sterilisers and Autoclaves. In place of a removable insert it has a fixed block with pockets for a reference probe and the type of test sensor commonly used in validation applications.

MODEL	MEDIUM
Range at 20°C	30 to 350°C
Stability	0.03°C
Accuracy – basic	±0.3°C
Accuracy – complete (2)	±0.2°C
Heating Time	50 to 350°C in 15 minutes
Cooling Time	350 to 100°C in 40 minutes
Calibration Capacity	148mm depth 25mm Ø
Power	750W
Traceable Certificate	Included
UKAS Certificate	Extra
PC Communications	Included
Software	Included
4-20mA Input	Complete Models
Ramps and Dwells	Yes with Software
Dimensions	228 x 248 x 143mm
Weight	6.35kg
