-35°C to 140°C

During a recent Isotech seminar, twenty experienced engineers from many parts of the world were asked to produce their ideal specification for industrial Dry Block Calibrators. The result is our new range of Fast-Cal dry block calibrators.

  • 25 x 148mm Calibration Volume
  • Rugged
  • Lightweight
  • Easy to use on site

DESCRIPTION

Need advice on which model? Dry Block Selection Guide

Fast-Cal – the product range you designed !

During early 2004 20 experienced engineers from many parts of the world were asked to produce their ideal specification for industrial calibration. Their top ten requirements, in order of priority, are: Rugged, Lightweight, Easy to use on site, Low cost/high benefit ratio, Fast response, high stability, Time saving features, Multiple sensor testing, Software, Modern design, Compliant with the latest regulations.

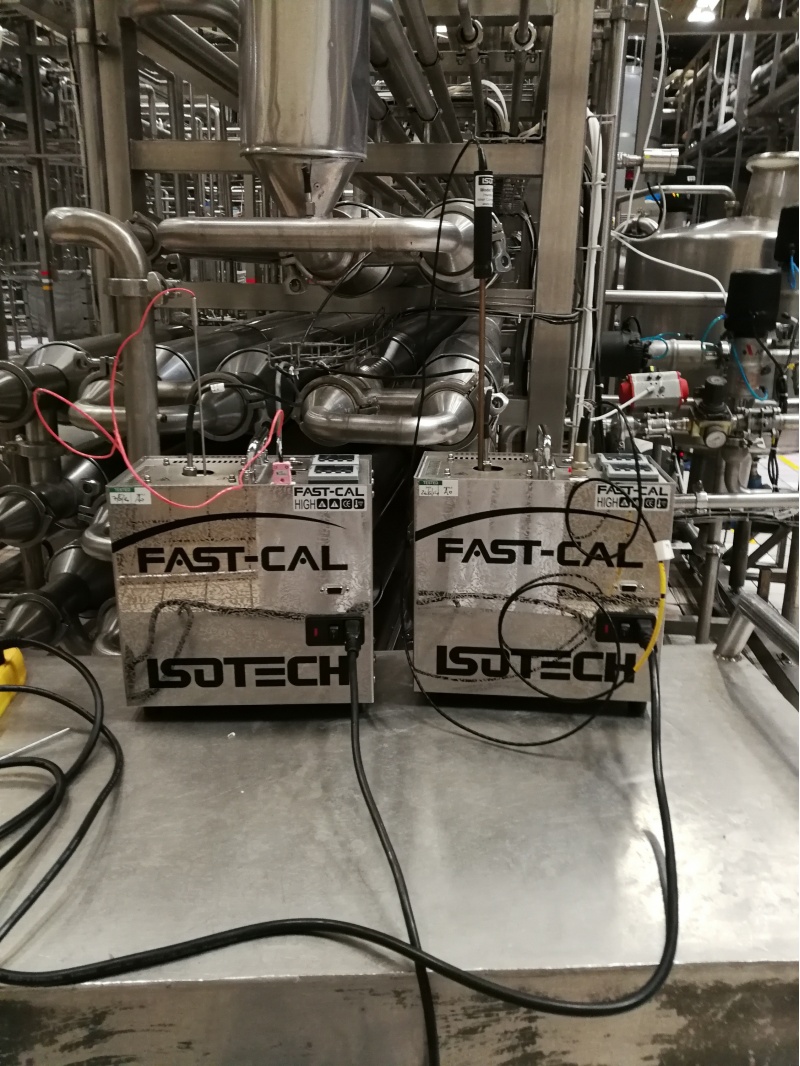

One model is ideal for the validation of Washer Disinfectors, Steam Sterilisers and Autoclaves. In place of a removable insert it has a fixed block with pockets for a reference probe and the type of test sensor commonly used in validation applications.

MODEL LOW
Range at 20°C -35 to 140°C
Stability 0.02°C
Accuracy – basic ±0.02°C
Accuracy – complete (2) ±0.15°C
Heating Time -30 to +140°C in 15 minutes
Cooling Time +140 to 0°C in 15 minutes
Calibration Capacity 148mm depth 25mmØ
Power 150W
Traceable Certificate Included
UKAS Certificate Extra
PC Communications Included
Software Included
4-20mA Input Complete Models
Ramps and Dwells Yes with Software
Dimensions 228 x 248 x 143mm
Weight 6.60kg
Using Isotech Dry Blocks to Test Thermostats
Isotech Temperature Controllers
Isotech Temperature Indicators
