452 乾冰降溫器

chevron_right



Are you fed up with cold wet hands, and hours of frustration when you produce an ice mantle in your Triple Point Water Cell?

Change your life and try the Isotech Ice Mantle Maker

We developed it, like so many of our products, for our own use in our UKAS facility. It is so easy that we actually want to make more mantles. The days of dreading making ice mantles are gone with the Ice Mantle Maker.

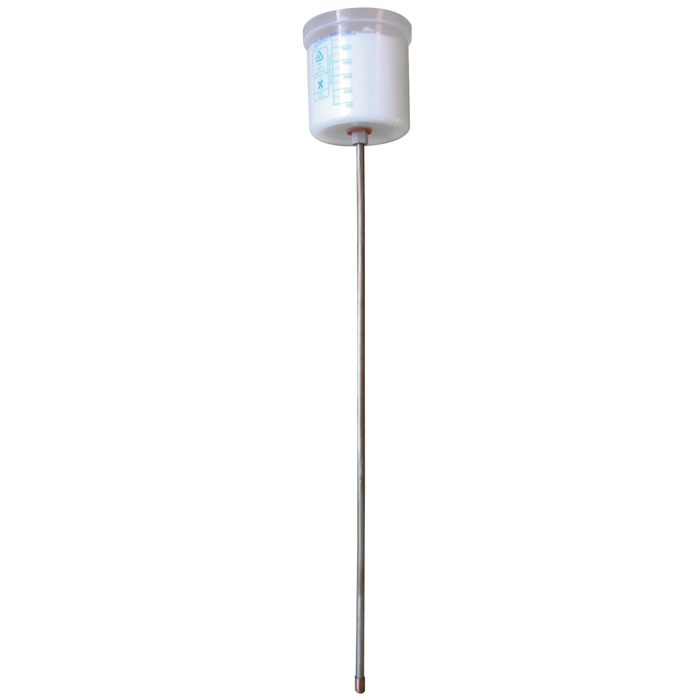

It works by using a specially designed anti-gravity heat-pipe. The heat-pipe exits the cell and exchanges the heat/cool in a small container filled with solid carbon dioxide or, preferably, liquid nitrogen.

Because of the low temperature gradient along the heat-pipe the ice mantle is formed close to 0°C, and so beautiful, strain-free mantles are formed.

The Mantle Maker works equally well when you wish to increase the thickness of ice at the bottom of the cell. By keeping only a cc of alcohol in the cell the heat transfer is focused around the bottom of the triple point water cell.



  • Specially designed anti-gravity heat pipe
  • Create mantle in 20-30 min with Jarrett-Isotech cell
  • Option for additional Ice Bridge Prevention Collar
  • Form beautiful, strain-free ice mantles
TECHNICAL FEATURE VALUE
Weight 250g
Typical time to create a mantle 20-30 minutes using a Jarrett-Isotech A11 Water Triple Point Cell (longer or shorter times for larger or smaller cells)
Options Additional Ice Bridge Prevention Collar
How to order 452 Ice Mantle Maker and one ice bridge prevention collar
Please specify A) Cell type or B) Outside diameter of water triple point cell (mm) C) Depth from shoulder of cell to water level (mm)
乾冰降溫器 型錄
PDF
乾冰降溫器操作
