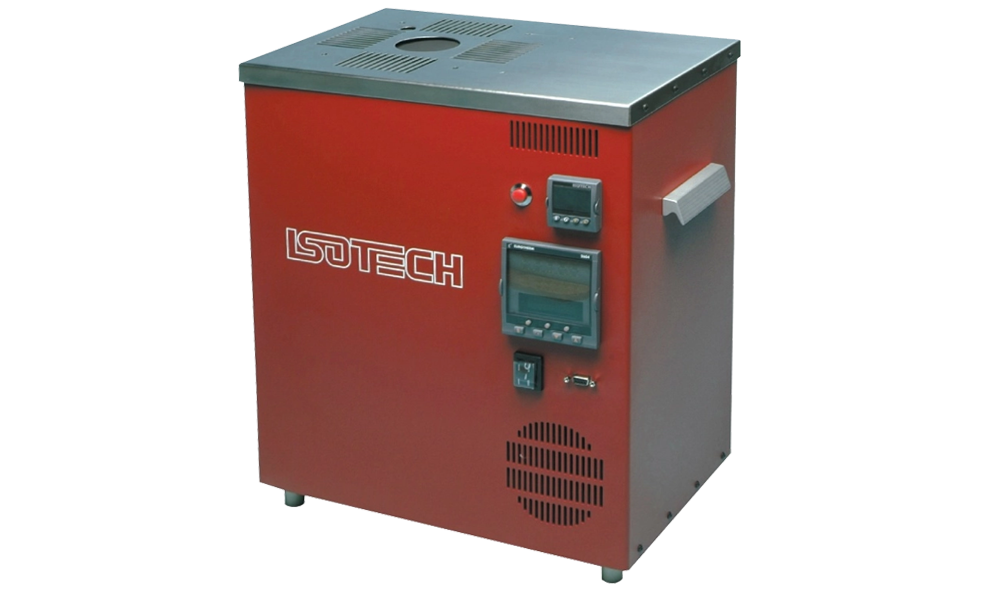

Model 426 is for Aluminium, Silver or Copper slim fixed point cells as well as for comparison calibration. Heatpipes provide the ideal conditions for the creation and maintenance of slim ITS-90 cells.
- 50 x 300mm Calibration Volume
- Compact Heatpipe Furnace
- Suits Aluminium, Silver or Copper Fixed Points
- Can be used for comparison and infrared calibration
Oberon for Slim Cells
Model 426 is for Aluminium, Silver, Gold or Copper slim fixed point cells as well as for comparison calibration.
- 50 x 300mm Calibration Volume
- Compact Heatpipe Furnace
- Suits Aluminium, Silver or Copper Fixed Points
- Can be used for comparison and infrared calibration
| TECHNICAL FEATURE | VALUE |
|---|---|
| Model | 426 |
| Temperature Range | 450°C to 1100°C |
| Stability | ±0.05°C |
| Display Resolution | 0.1°C |
| Cavity Size | 50mm diameter 300mm deep |
| Time to Temperature | 4 hours |
| Communications | Supplied as standard with serial interface, PC adaptor cable and Cal NotePad |
| Power | 110 Vac, 1.5kW, 50/60Hz (230 Vac Transformer available) |
| Dimensions | Height 410mm Width 415mm Depth 280mm Weight 30.5kgs |
| Accessories | Metal Block Bath – 426-06-05 Adjustable Equalizing Block. Six pockets 8mm x 160mm deep. |
| ITS-90 Fixed Point | ITL M 17672QS Aluminium Quartz Clad Slim Cell |
| Apparatus | ITL M 17673QS Silver Quartz Clad Slim Cell |
| Inconel Basket including insulators | 426-04-00 |
| 230/110V Transformer | 935-19-43 |
| How to order | 426 Oberon High Temperature Furnace – Please specify voltage required. |
相關產品

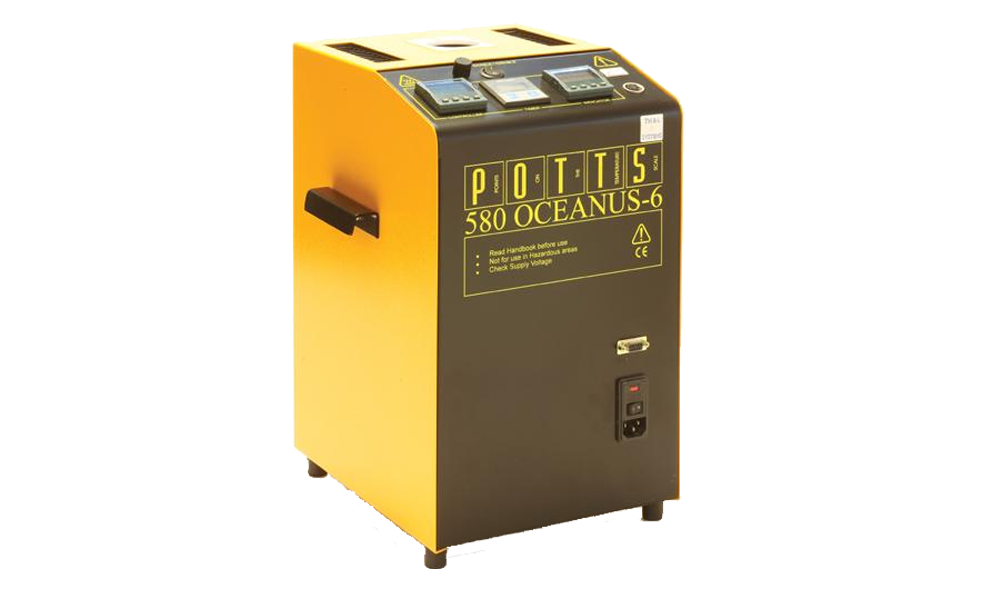

The multi-functions of the Oceanus-6 is a unique concept from Isotech, so unique that it is currently the subject of a p
