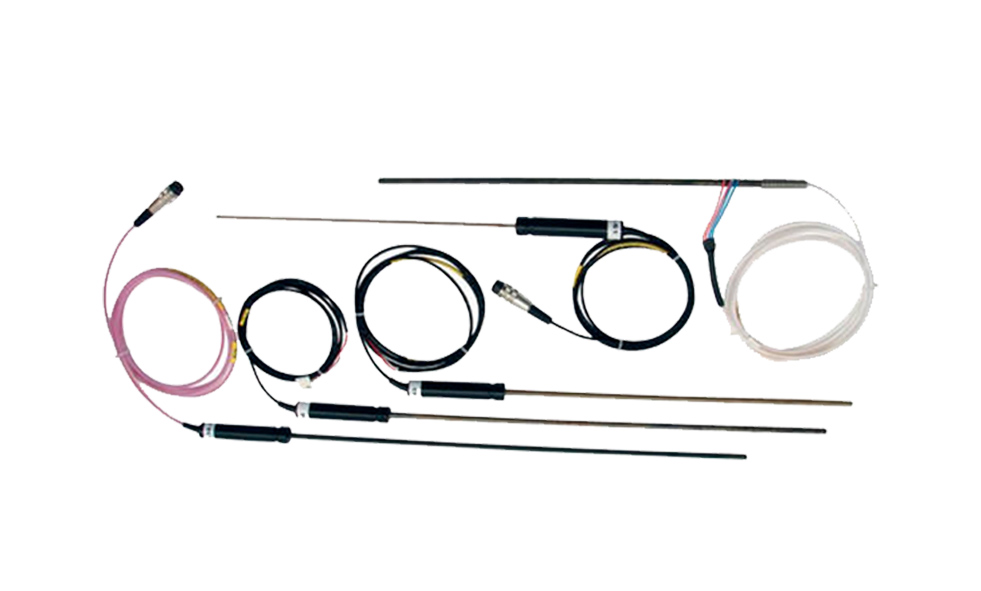

Semi Standard PRTS
We now have 90 degree angled probes to a maximum temperature of 660°C.
These industrial platinum resistance thermometers are ideal for field and lab use. Suitable for use as working standards in Dry Blocks and Liquid Baths or as high accuracy probes for our range of True Temperature Indicators.
- High Accuracy, -200°C to 660°C
- Working Standards In Dry Blocks and Liquid Baths
- Field and Laboratory Use
選單
| Model | Range | Diameter | Length |
| General Purpose | Further Details | ||
| 935-14-112 | -5o°C to 250°C | 3 mm | 225 mm |
| 935-14-61 | -5o°C to 250°C | 4 mm | 300 mm |
| 935-14-13 | -196°C to 250°C | 6 mm | 350 mm |
| 935-14-113 | -100°C to 250°C | 6 mm | 350 mm |
| 935-14-16 | -100°C to 450°C | 6 mm | 450 mm |
| 935-14-116 | -100°C to 450°C | 6 mm | 350 mm |
| 935-14-72 | -5o°C to 670°C | 6 mm | 375 mm |
| 935-14-98 | -5o°C to 350°C | 4 mm | 300 mm |
| Working Industrial Standards | Further Details | ||
| 935-14-95L | -200°C to 165°C | 6 mm | 480 mm |
| 935-14-95H | -8o°C to 670°C | 6 mm | 480 mm |
| Angled Probes | Further Details | ||
| 935-14-82 | -5o°C to 250°C | 4 mm | 165 mm |
| 935-14-85 | -5o°C to 250°C | 6 mm | 385 mm |
| 935-14-75 | -5o°C to 250°C | 4 mm | 213 mm |
| 935-14-79 | 0°C to 660°C | 6 mm | 199 mm |
| TECHNICAL FEATURE | VALUE |
|---|---|
| Ro | 100Ω ± 0.05Ω |
| Alpha | 0.003850 ± 0.000005 |
| Standard | IEC 60751 |
| Stability | 0.010Ω/ year |
| Recommended Current | 1mA |
| Self Heating at 1mA | 0.004°C |
| Calibration | Optional UKAS Calibration at extra cost. See table for typical uncertainties. |
| Connection | 4 Wire |
| Max. Handle Temperature | 80°C |
